Friday, April 16, 2010

Tips on Management Pack Administration



I’d like to point you over to this thread on the TechNet forums.  It’s a list of dos and don’ts regarding MP administration and lifecycle, there is some great stuff in there.

Credit for this goes to Dan Rogers of Microsoft.



Here’s the good part (links added by me for clarity):



Things to NOT do



1.  Do not put overrides in the default MP.  The default MP is ok for getting a demo to work or test how to create overrides - but over time if you put all overrides in default mp file, you will run into configuration churn, performance problems and limit your recovery capabilities.



2.  Overly complicate your MP design.  It isn't the number of MP's that causes problems (although thousands are beyond the design limit of the software) - but mainly overly complex file structures, unnecessary inheritance graphs, and unexpected side effects from making a poor base class selection.



3.  Do NOT use Windows.computer as a target for monitor - this will cause all kinds of chaos.



4. Do NOT inherit from Windows.Computer for a class you discover.  If you need a CMDB, buy a CMDB (for SA customers, Service Manager is a sweet deal!).  Doing so will cause extra copies of workflows to run in unexpected places.



Things to do



1.  DO start learning more before you get started.  There are some excellent experts hanging out here [TechNet Forum] and on SystemCenterCentral.



2.  DO evaluate MP management solutions that are commercially available.  Thinking you can create it all in house cheaper is a noob mistake.



3.  DO keep your pre-prod and prod environments.  overrides should NOT be created in production - they should be created in sidecar MP files (one per file set for a given MP you create) in your pre-prod or test environment, then migrated as an import step.  Making overrides in production can be horribly performance intensive because all updates are sent as soon as you save a single change.  By making them in your pre-prod environment and migrating the override file, you have control



4.  DO lock down the number of people who have administrator permissions on your production console. Only the most process focused admins should be allowed the keys to production - change control works best when it also applies to monitoring.  If you have "wild and woolly" types who cannot respect a rigorous change control regime, demote them to read-only permissions in production and let them design overrides in pre-prod and then submit requests to have their side-car files migrated to production



5.  DO test and tune every MP in pre-prod so that when you take it to production, it arrives already tuned.  Most MP's you get are set to "maximum noise" mode so you need to turn off the rules and monitors you don't need.  Ideally, you have a pre-prod MP creating ZERO alerts that are not also one:one with actual problems that are operationally actionable.

Matt.

Wednesday, April 7, 2010

Released: Operations Manager Web Service – Simplify Maintenance Mode



[see previous posts on this subject]

So finally I have gotten around to releasing my web service for Operations Manager.

Known as SCWS, it comes in three parts:

I hope to release more formal documentation in the future, but for now – here’s a quick start guide.

Edit:
SCWS has been written in .Net 3.5 – so both the web service and the clients will require the .Net framework 3.5 in order to run.

Installing the Web Service

The first thing to do will be to download and the web service and run the installer on the RMS.  After it is installed, you must do the following:

  • Enable Windows authentication on the IIS virtual directory
  • Disable Anonymous authentication on the IIS virtual directory


Once installed, open a browser and to open the following URL:

http://<yourserver>/scws/om.asmx

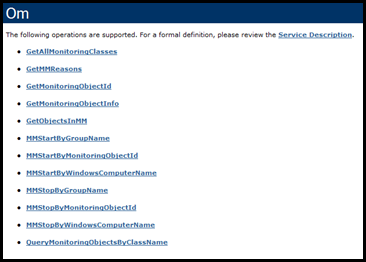

If all is well, you should see a page like the one above.



Using the GUI Client

Now download the GUI client, extract the files and edit the .config file.  You will need to change the following things:

  • URL of the web service
  • Default RMS name

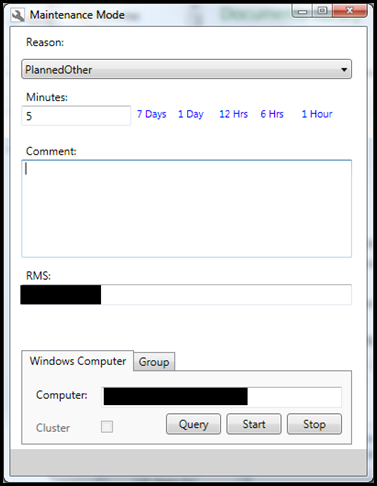

Once done, run the .exe:


Type a computer to place into maintenance mode and click Start:

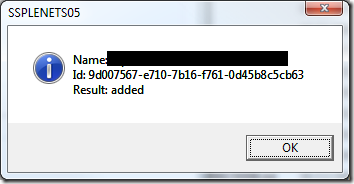

The computer is now in Maintenance Mode!



Using the Command Line Client

Now download the client, extract the files and edit the .config file.  You will need to change the following thing:

  • URL of the web service

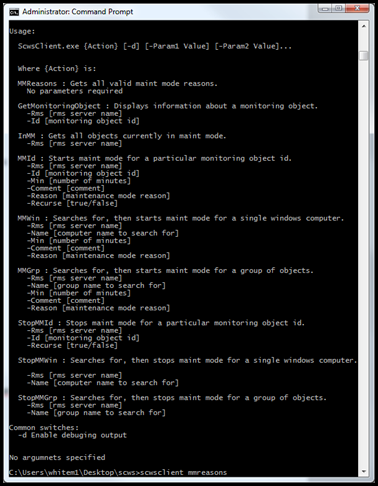

Run the .exe without parameters to display the syntax:

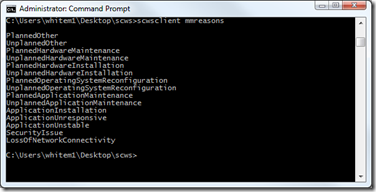

To test the client, type:  ScwsClient.exe MMReasons

You should see the following output:






Enjoy :)

This software has been developed in the best possible faith, and contains nothing malicious.  However, please make sure to test this in a low-risk environment before considering applying this to production systems.

Note:
This posting and application are provided “AS IS” with no warranties, and confers no rights.
